Sistem analiza Century 3000 pentru holtere

Sistem analiza Century 3000 pentru holtere

Detalii produs

Categoria: Cardiologie
Firma: Sales Promotion Agency

Overview

Sophisticated analysis, editing, and data management software designed by the company that's been scanning Holters for more than thirty years.

As the flagship of the Century family, the C3000 incorporates all of the benefits of the C1000 and C2000 with its own valuable and unique features. Full-featured editing tools are available during the prospective analysis stage, in addition to the tools available in template editing and validation. This allows users to produce the most accurate reports possible in the least amount of time. Additional analysis tools are available for QT segment, event-based enhanced ST and Spectral HRV; each producing detailed reports. Powerful data export tools are also included. This strong system allows users to take the best aspects of prospective, retrospective, and page view scanning and apply them as they see fit in order to maximize their individual scanning style.

Specifications

Analysis Tools and Capabilities

  • 2 channel arrhythmia analysis, either user-selectable or automatic
  • 3 channel ST segment analysis
  • QT analysis on any single channel
  • Time-domain Heart Rate Variability
  • Supports sampling rates from 128 to 1024

 Holter Recorder Compatibility

  • Datrix VX3 Digital Holter recorders
  • Braemar DL and DXP series Digital Holter Recorders
  • ELA SpiderView™ Digital Holter Recorder
  • Cassette Recorders (system option)

 Software Features

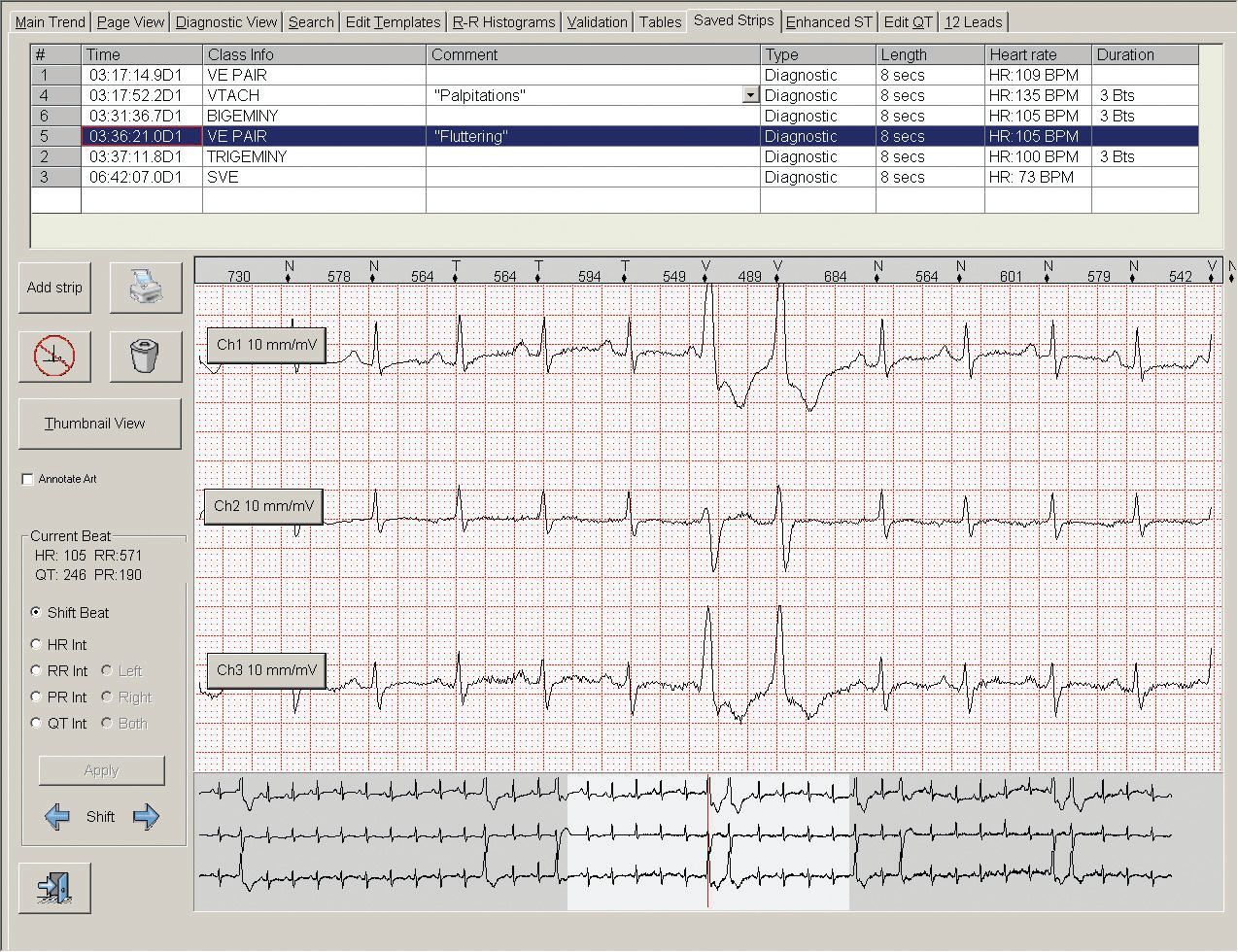

  • Prospective analysis with superimposition, RR interval histogram, and automated arrhythmia analysis
  • Page-mode display with color-coded beat highlighting
  • Template Editing
  • RR Interval histograms and scatter plots
  • Validation Display for rapid identification of significant events
  • On-screen display of all analysis tables with editing capabilities
  • Enhanced ST analysis
  • Point-and-Click Beat Editing

 Final Report Options*

  • Cover Page (Paragraph or Tabular)
  • General Table
  • Supraventricular Ectopy Table
  • Ventricular Ectopy Table
  • Bradycardia Table
  • Pacemaker Activity Table
  • ST and Heart Rate Trend
  • Ectopy Histograms
  • Heart Rate Variability
  • Strip List Summary
  • Diagnostic Strips
  • Patient Event Strips
  • Significant Event Strips
  • Full Disclosure
*Reports can be customized to include any or all of thesections listed above. The cover page can be customizedwith your logo and paragraph text that is specific to yourfacility or to individual referring physicians.

Century 3000 Configurations

The system is available as software-only (includes flash card reader or recorder interface cable) or can be furnished as a complete solution including computer hardware and printer.


Nr. vizualizari: 2150
23 Noiembrie 2024
