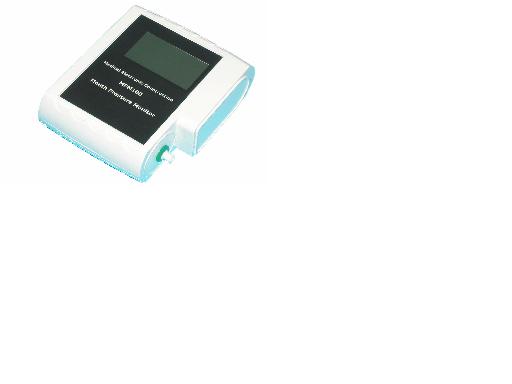

Pocket-Spiro MPM100 - masurarea presiunii cavitatii bucale
Detalii produs
Categoria: Aparatura medicala
Firma: Sales Promotion Agency
General
Maximal Mouth Pressure Meter
The Pocket-Spiro® MPM100 is a simple
and non invasive device for the measurement of Maximum Inspiratory and
Expiratory mouth pressure (MIP / MEP), the maximal peak pressure both
inspiratory (SNIP) and expiratory.
The device is of high precision, portable, reliable, robust, handy, compact and easy to use.
It is operated by a single button (
The
Maximal Expiratory Pressure at the mouth is measured at TLC (Total Lung
Capacity), lungs full. A forceful expiratory manoeuvre leading to a sustained
maximal effort, during which time the best second average is calculated, is
followed by natural release upon fatigue. The best result from 3 tests, with a
suitable 1 or 2 minute recovery period between efforts, is used as the value of
expiratory muscle strength.
The graphical display allows
you to validate the manoeuvre because of the pressure curve plotted in an
autoscaling chart (50,100,150 and 200 cmH20).
The MIP/MEP
and Peak Inspiratory/Expiratory pressure (PIP/PEP) are also calculated.
The
PDI (Patient Data Interface) is an optional software for displaying in real
time the pressure wave forms developed during testing with the MPM100.
Specifications
|
Mouth pressure |
Solid state pressure transducer |
|
Range |
± 20 kPa (200 cmH20) |
|
Accuracy |
Accuracy:
0.5%, full scale (Resolution: 12 bit) |
|
Temperature :
|
+10°C to
+40°C. |
|
Barometric
pressure |
850 to
1200 mbar |
|
Humidity |
25 – 85% (non condensing) |
|
PC minimal requirements |
Pentium IV 3 GHz or higher, Windows 2000, XP SP2 or Vista with 500 Mb RAM or more, 800*600 display
with true colours (32 Bit), CD-Drive, Keyboard, mouse and graphics printer,
at least 1 USB 2 port, Microsoft Office Word® 2000 or higher |
